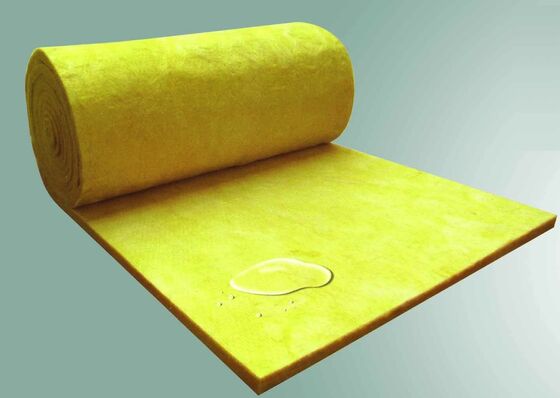

Glass Wool Insulation Blanket, Thermal Insulation Glass Fiber Blanket
| MOQ: | 10 rolls |
| Price: | Negotiable |
| Standard Packaging: | Vacuum shrink packaging |
| Delivery Period: | 5-8 day |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000000 rolls /month |
Glass Wool Insulation Blanket
,Thermal Insulation Glass Fiber Blanket
,Rockwool Blanket Insulation
Product Information
Glass wool is a lightweight, inorganic thermal insulation material produced from natural minerals—such as quartz sand, soda ash, and borax—by melting them at high temperatures, centrifugally spinning them into fibers, and bonding/curing them with a thermosetting resin. It features a fluffy, fibrous structure and offers advantages such as low weight, thermal insulation, sound absorption, Class A non-combustibility, and ease of installation; it is commonly available in three forms: glass wool blankets, glass wool boards, and glass wool pipe sections.
Product Specifications
|
Item |
Specification |
|
Product Name |
Glass Wool Insulation Blanket |
|
Raw Material |
Inorganic glass fiber + thermosetting binder |
|
Color |
Yellow / White |
|
Density |
10–48 kg/m³ |
|
Thickness |
25mm, 50mm, 75mm, 100mm, 125mm, 150mm |
|
Width |
1200mm / 600mm |
|
Length |
10m, 15m, 20m or customized |
|
Thermal Conductivity |
≤0.040 W/(m·K) at 25℃ |
|
Fire Performance |
Non-combustible, Class A1 |
|
Operating Temperature |
-120℃ ~ +450℃ |
|
Sound Absorption Coefficient |
NRC 0.45–0.95 |
|
Facing Option |
Unfaced / Aluminum Foil FSK / White Tissue / Black Tissue |
|
Moisture Absorption |
≤1.0% |
|
Water Repellent |
Optional |
|
Packaging |
Plastic film roll packing |
I. General Core Properties
Fire Rating: Class A non-combustible; high-temperature resistant; produces no smoke, toxins, or flaming droplets when exposed to fire
Thermal Insulation: Low thermal conductivity (approx. 0.030–0.040 W/(m·K)); excellent energy-saving performance
Sound Absorption & Noise Reduction: Porous fibrous structure; excellent absorption of mid-to-high frequency noise
Lightweight & Flexible: Low density and light weight; imposes minimal structural load
Water-Repellent & Moisture-Resistant: Treated for water repellency; low water absorption; resistant to mold and rot
Chemical Stability: Resistant to acids, alkalis, and aging; immune to insect damage; long service life
Eco-friendly & Safe: Formaldehyde-free or low-formaldehyde; no dust pollution; easy to install
II. Glass Wool Blanket
1. Product Features
- Soft, elastic, and rollable texture
- Available with aluminum foil facing (aluminum foil + non-woven fabric), providing reflective insulation, moisture resistance, and scratch protection
- Can be cut and bent as needed to fit complex structures
2. Key Specifications
- Standard Density: 12–48 kg/m³
- Thickness: 25mm, 50mm, 75mm, 100mm
- Standard Dimensions: 1200mm/1250mm width; length customizable
3. Applications
- Thermal insulation for steel structure roofs and walls in buildings
- Insulation wrapping for central air conditioning ducts and ventilation pipes
- Sound absorption and noise reduction for equipment rooms, workshops, KTVs, and cinemas
- Insulation and sound absorption infill for light-gauge steel stud partition walls
