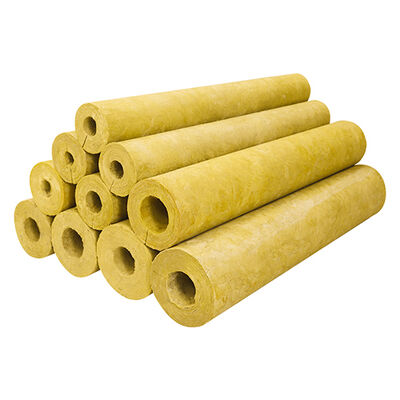

Mineral RockWool Insulation Steam Pipe Insulation Rock Wool Tube

Mineral RockWool Insulation Steam Pipe Insulation Rock Wool Tube

MOQ: 100 m
Price: Negotiable
Standard Packaging: Plastic Bag
Delivery Period: 10 days
Payment Method: L/C,D/P,T/T,Western Union
Supply Capacity: 100000 m/month
Detail Information
Place of Origin
China
Brand Name
SUNWOOL
Certification
ISO CE
Model Number
Rockwool Pipe
Refractoriness:
750C
Size:
Customizable
Package:
Plastic Bag
Type:
Board,pipe Blanket
Blanket Density:
50-120kg/m3
Board Density::
40-200kg/m3
Pipe Density:
80-150kg/m3
Highlight:

Mineral RockWool Insulation

,

RockWool Steam Pipe Insulation

,

Mineral Rock Wool Tube

Product Description

Mineral Rock Wool Tube Pipe Rock Wool  Pipe Insulation Pipe Steam Pipe Insulation


Description:

Leadsun rock wool products are made from natural rock such as basalt and dolomite. The natural rock are melted into melts in cupola at a very high temperature about 1500°C. And the melts lava is then pour to high speed spinners through which the melts get into fibers. At the same time, the phenolic binder containing silicon and mineral oil etc are sprayed onto the surface of each fiber homogeneously.


Rock wool uses high-quality natural rocks such as basalt and dolomite as the main raw materials. The raw materials are melted into a melt at a high temperature of about 1500°C. The melt is then centrifuged at a high speed by a centrifuge to form fibers. With the action of negative pressure air, the newly formed rock wool fibers are quickly collected together to form a rock wool felt. After that, through processes such as pendulum laying, pleating, pressurization and curing to take shape, and then according to the requirements of customers, it is processed into various types such as rock wool boards, rock wool blankets or rock wool pipes, etc. Rock wool products are widely used in construction, industry, ships, etc. Welcome to inquire us!


Pipe insulation materials are used to retard the flow of heat energy by reducing heat loss or gain from pipe work and also as acoustic insulation. Adding pipe insulation will keep the heat in your heating system. It will reduce the amount of energy you use to heat your water and hot water will stay hotter for longer. Wrap the insulation round your pipes and you will notice the difference straight away.

Rock wool type insulation have excellent fire resistant properties. they have a melting point about 1170 Centigrade. This fire resistant ability gives it a huge advantage over insulation products like foam, fiberglass and cellulose that would burn at much lower temperatures. Rock wool products are often used for fire blocking applications, insulating around chimneys and fireplaces and situations where the insulation needs to be left exposed.

Length
1000MM
Inside diameter
22MM~610MM(1/2"~24")
Thickness
30~150MM

For other sizes and packaging options, please contact our sales representatives.

Performance
Test Standard
Compliance
Mineral Fiber Pipe Insulation Types3
ASTM C547
Use Temperature ,Max
1200 °F (650°C)
ASTM C411
Reaction to Fire
Flame Spread Index = 0; Smoke Developed Index = 5; Class A
ASTM E84
Density
70-150kg/m3
ASTM C303
Corrosion Resistance
Stress Corrosion Cracking Tendency of Austenitic Stainless Steel - Passed
ASTM C795
Dimensional Stability
Linear Shrinkage = < 0.5 % @ 1200 °F (650 °C)
ASTM C356
Thermal Resistance
0.044W/mk@93°C, 0.062W/mk@204°C, 0.088W/mk@316°C, 0.110W/mk@371°C
ASTM C518 (C177)
Reaction to Moisture
Water Vapor Sorption - 0.2 vol%
ASTM C1104
