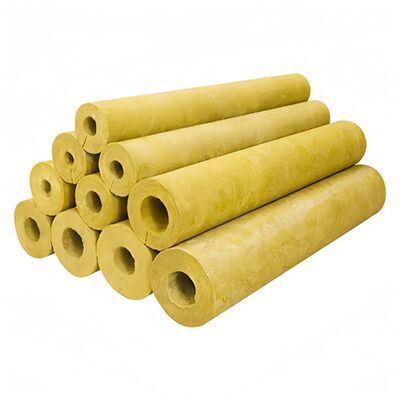

High Temperature Rock Wool Pipe Thermal Insulation For HVAC Pipes Ducts
| MOQ: | 100 m |
| Price: | Negotiable |
| Standard Packaging: | Plastic Bag |
| Delivery Period: | 10 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 100000 m/month |
Detail Information
Place of Origin
China
Brand Name
SUNWOOL
Certification
ISO CE
Model Number
Rockwool Pipe
Refractoriness:
750C
Size:
Customizable
Package:
Plastic Bag
Type:
Board,pipe Blanket
Blanket Density:
50-120kg/m3
Board Density::
40-200kg/m3
Pipe Density:
80-150kg/m3
Highlight:
Rock Wool Pipe Thermal Insulation
,High Temperature Rock Wool Pipe
Product Description
15 YEARS OF EXPERIENCE
Leadsun brings over 15 years of expertise in manufacturing high-performance insulation materials. Our rock wool pipe sections are engineered to deliver thermal insulation, fire prevention, moisture resistance, and acoustic performance, making them ideal for HVAC, industrial piping, and ductwork systems.
Technic parameter
| Product performance | Unit | LDS 60-200 | Standard | ||
|---|---|---|---|---|---|
| Apparent Density | kg/m3 | 140 | 160 | 180 | GB/T5480 |
| Compression strength(10%defomation) | kPa | ≥40 | ≥50 | ≥60 | GB/T13480 |
| Tensile strength (perpendicular to surface) | kPa | ≥7.5 | ≥10 | ≥15 | JG149-2003 |
| Thermal conductivity(25℃) | w/(m•K) | ≤0.040 | ≤0.040 | ≤0.040 | GB/T10295 |
| Fire resistant | -- | Non-combustible grade A | GB/T8624 | ||
| Water repellence | % | ≥98 | ≥98 | ≥98 | GB/T10299 |
| Acid index | -- | ≥1.8 | ≥1.8 | ≥1.8 | GB/T5480 |
| Moisture absorption | % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T5480 |
| water Absorption(partial immersion 24h) | kg/m2 | ≤0.5 | ≤0.5 | ≤0.5 | GB/T25975-2010 |
| water Absorption(partial immersion 28d) | kg/m2 | ≤2.0 | ≤2.0 | ≤2.0 | GB/T25975-2010 |
| Noise Reduction Coefficient(NRC) | --- | ≥0.6 | ≥0.6 | ≥0.6 | GB/T18696 |
| Dimension Stability | % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T8811 |
| Thickness Tolerance | mm | ±3 | ±3 | ±3 | GB/T5480 |
| Squareness | mm/m | ≤5 | ≤5 | ≤5 | GB/T5480 |
| Flatness | mm | ≤6 | ≤6 | ≤6 | GB/T25975-2010 |
| Melting Point | ℃ | ＞1000 | |||
Quick Detail:
Leadsun Rock Wool Pipe Insulation is a Class A1 non-combustible material designed for thermal and acoustic insulation of pipes, ducts, and cylindrical equipment. With excellent fire prevention, moisture resistance, good durability, and dimensional stability, it ensures long-lasting performance in various environmental and operational conditions.
Features:
- High Fire Resistance:Class A1 non-combustible material, suitable for fire-rated pipe and duct systems.
- Excellent Thermal Insulation:Low thermal conductivity (≤0.040 W/m·K) ensures effective heat retention and energy savings.
- Superior Acoustic Performance:Effectively reduces noise transmission from piping systems.
- Water Repellent & Moisture Resistant:Hydrophobic treatment (≥98%) prevents water absorption, maintaining insulation performance in humid environments.
- Easy to Install:Pre-formed pipe sections with longitudinal slit for quick installation on existing pipes.
- Corrosion Resistant:Suitable for industrial and chemical environments.
- Environmentally Safe:Free from asbestos and CFCs.
- Dimensional Stability:Maintains shape and performance over a wide temperature range.
Available Sizes:
- Inner Diameter (ID):15mm to 1200mm (customizable)
- Thickness (T):25mm to 100mm
- Length (L):1000mm or as required
- Density Options:60kg/m³, 80kg/m³, 100kg/m³, 120kg/m³, 140kg/m³, 160kg/m³, 180kg/m³
Applications:
- HVAC Systems:Insulation for heating, ventilation, and air conditioning pipes and ducts.
- Industrial Piping:Thermal insulation for hot and cold pipelines in power plants, refineries, and chemical plants.
- Fire Protection:Fire-rated pipe insulation for critical safety systems.
- Acoustic Control:Noise reduction for mechanical piping systems.
- Marine & Offshore:Insulation for ship piping and offshore platform systems.
- Commercial Buildings:Pipe insulation in hotels, hospitals, shopping malls, and data centers.
