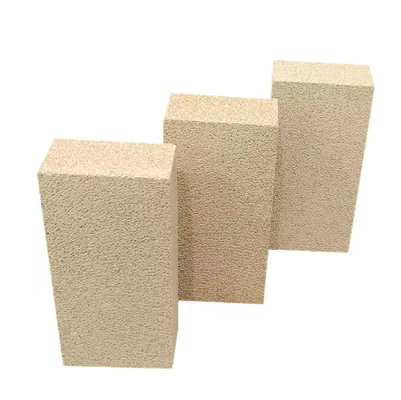

Light High Alumina Insulation Brick 230x114x65mm Furnace Insulating Refractory Brick
Products
Contact Us
|
Light High Alumina Insulation Brick 230x114x65mm Furnace Insulating Refractory Brick
| MOQ: | 500 PCS |
| Price: | Negotiable Price |
| Standard Packaging: | Pallet |
| Delivery Period: | 10-15days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000 tons/month |
Detail Information
Place of Origin
CHINA
Brand Name
LEADSUN
Certification
ISO
Model Number
LG0.5-1.2
Application:
Furnace Lining, Heat Insulation
Productname:
High Alumina Insulation Brick
Size:
230*114*65mm 230*114*75mm
Color:
White Or Pink
Refractoriness:
900-1500C
Density:
0.5-1.3g/cm3
Package:
Pallet
Shape:
Customizable
Highlight:
Light High Alumina Insulation Brick
,High Alumina Insulation Brick 230x114x65mm
,Furnace Insulating Refractory Brick
Product Description
Lightweight High Alumina Insulation Brick For Energy-Efficient Furnaces 230*114*65mm
Lightweight high alumina bricks, or high-alumina insulating bricks, are critical components for thermal insulation in industrial kilns and furnaces. Engineered to minimize heat loss and enhance energy efficiency, they typically contain over 48% Al₂O₃. Primarily serving as backup insulation, they are installed behind the primary furnace wall, shielded from direct exposure to peak temperatures. This refractory material combines high compressive strength with low thermal conductivity to deliver reliable and effective thermal insulation.
Technical data
| Brand | ||||||
| Items | LG-1.2 | LG-1.0 | LG-0.8 | LG-0.7 | LG-0.6 | LG-0.5 |
| Al2O3 % | ≥48 | ≥48 | ≥48 | ≥48 | ≥48 | ≥48 |
| Fe2O3 % | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
| Bulk Density g/cm3 | ≤1.2 | ≤1.0 | ≤0.8 | ≤0.7 | ≤0.6 | ≤0.5 |
| Cold Crush Strength,MPa | ≥4.5 | ≥4.0 | ≥3.0 | ≥2.5 | ≥2.0 | ≥1.5 |
| Permanent Linear Change Rate,% | 1400℃*12h ≤2 | 1400℃*12h ≤2 | 1400℃*12h ≤2 | 1350℃*12h ≤2 | 1350℃*12h ≤2 | 1250℃*12h≤2 |
| Thermal Conductivity W/(m·K) 350±25℃ |
≤0.55 | ≤0.50 | ≤0.35 | ≤0.35 | ≤0.30 | ≤0.25 |
Application in Furnace Design:
Lightweight high alumina bricks are strategically positioned in the insulating layer of a composite refractory lining system. Their role is critical in:
- Thermal Management: They act as a high-temperature insulator behind the primary working lining, drastically reducing heat flux to the furnace shell.
- Energy Conservation: By forming a reliable thermal barrier, they directly contribute to lower operating costs and improved energy efficiency of the thermal unit.
- Structural Protection: Their installation helps maintain a lower and more stable temperature on the furnace’s steel casing, protecting it from thermal damage.
- Typical Placement: These bricks are not in direct contact with the furnace charge or flame but are essential for the lining's overall thermal performance and longevity.
