Compressed Blanket Ceramic Fiber Module Low Heat Storage Energy Saving
| MOQ: | 50 pcs |
| Price: | Negotiable |
| Standard Packaging: | Carton Box or Pallet |
| Delivery Period: | 15 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000 tons/month |
Detail Information
Place of Origin
CHINA
Brand Name
SUNWOOL
Certification
ISO CE
Model Number
1260C 1350C 1430C
Refractoriness:
1050-1800C
Size:
Customizable
Package:
Bag Or Carton Box Or Pallet
Shape:
Customizable
Color:
White
Type:
Blanket Board Module Paper Textile
Highlight:
Compressed Ceramic Fiber Blanket
,Ceramic Fiber Module Energy Saving
,Compressed Ceramic Fiber Module
Product Description
Product Overview:

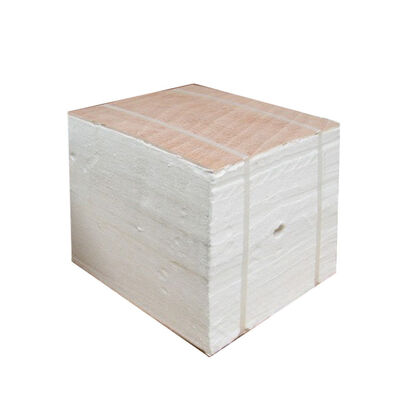

Revolutionize your furnace construction with our Ceramic Fiber Modules — a high-performance lining system where continuous folded blanket is under intelligent compression. This innovative design transforms flexible ceramic fiber into a robust, dimensionally stable modular unit. The result is a lining with the industry's highest achievable insulation value, dramatically reducing heat loss while enabling remarkably fast installation and lowering the overall steel structure requirement.
Technical Index
| Item | Standard | H Pure | Zirconium |
|---|---|---|---|
| AL2O3(%) | ≥44 | ≥45 | ≥34 |
| Sio2(%) | ≥52 | ≥54 | ≥50 |
| Fe2O3+Tio2(%) | ≤1.0 | ≤0.5 | ≤0.5 |
| ZrO2(%) | － | － | ≥15 |
| Classification Temperature (℃) | 1260 | 1260 | 1430 |
| Working Temperature (℃) | 1050 | 1100 | 1350 |
| Density (kg/m3) | 220 | 220 | 220 |
| linear shrinkage after heating(%) @24 hours | ≤2.5 (1000°C) |
≤2.5 (1100°C) |
≤3.5 (1350°C) |
| Thermal Conductivity(w/m.k) @400°C | 0.090 | 0.101 | 0.118 |
Core Benefits: Why Choose Modules?
- Unbeatable Thermal Efficiency: Achieves the highest insulation rating among ceramic fiber products, directly boosting furnace productivity and slashing energy costs.
- Rapid, Simplified Installation: The pre-assembled modular design allows for swift installation, significantly reducing labor time and downtime during furnace construction or relining.
- Lightweight & Structurally Efficient: Creates an exceptionally low-mass lining, which reduces the load and cost on the supporting steel framework.
- Design Flexibility: Available with several anchor systems (e.g., stud-weld, bolt-on) to fit various furnace designs and application requirements seamlessly.
- Reliable Performance: Offers low heat storage for faster cycling, excellent thermal shock resistance, and consistent performance from standard to high-temperature grades.
Versatile Industrial Applications:
Ceramic Fiber Modules are the preferred lining solution across global industries:
- Ceramics & Glass: Low-mass kiln cars, batch/continuous kilns, door linings, glass tempering furnaces.
- Power Generation: Insulation for ducts, heat recovery systems, boilers, and stack linings.
- Petrochemical & Refining: Lining for ethylene furnace roofs/walls, reformer furnaces, pyrolysis units.
- Steel & Metals: Ladle pre-heaters, heat treat furnaces, soaking pit covers, annealing lines.
- General Industry: Incinerators, burner blocks, induction furnace covers, and other thermal
