Lining Unshaped Conventional Dense Refractory Castable For Furnace
| MOQ: | 1 Ton |
| Price: | 200 usd - 500usd |
| Standard Packaging: | 1000 tons/month |
| Delivery Period: | 10 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000 tons/month |
Detail Information
Place of Origin
China
Brand Name
Leadsun
Certification
ISO CE
Model Number
Refractory Castable
Usage:
Furnace Liner,Fire Resistance Place,working Lining Casting,kiln Hood,Refractory Raw Material
Name:
Refractory Castables,high Alumina Self Flowing Refractory Castable,Insulating Castable Refractories For Nonferrous Metal Furnace
Refractoriness:
1350-1850C
Size:
1-6mm
Package:
Bag+ Pallet
Al2O3:
40-90%
Color:
Grey
Type:
Low Cement, High Alumina, Insulation Type,plastic,gunning Type
Highlight:
Conventional Dense Refractory Castable
,Furnace Dense Refractory Castable
,Unshaped Dense Refractory Castable
Product Description

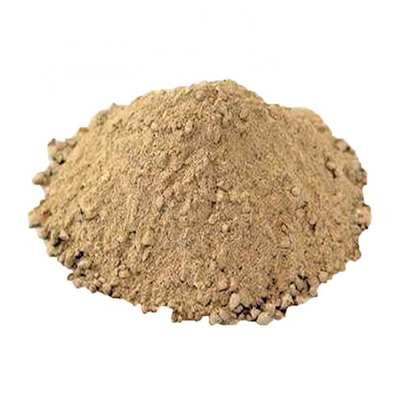

Lining Unshaped Conventional Dense Refractory Castable For Furnace
Conventional dense castable is produced from premium bauxite and flint clay aggregates, silica powder and α-alumina micropowder, bonded with calcium aluminate refractory cement. Different formulations are developed to suit a wide range of industrial furnace applications. TSCD series products are particularly suitable for steelmaking furnaces, boilers, incinerators, and other high-temperature industrial equipment.
Technical data
| Item | LDSCD45 | LDSCD55 | LDSCD60 | LDSCD65 |
|---|---|---|---|---|
| Service Temp ℃ | 1400 | 1450 | 1500 | 1550 |
| Bulk Density (g/cm3) (Dried at 110℃) |
2.2 | 2.2 | 2.3 | 2.35 |
| CCS 110℃ (Mpa) 1100℃ 1500℃ |
45 40 - |
47 42 - |
50 45 65 |
50 45 68 |
| MOR 110℃ (Mpa) 1100℃ 1500℃ |
7 6 - |
7 6 - |
8 7 9 |
8 7 9 |
| Max Grain Size (mm) | 6 | 6 | 6 | 6 |
| Chemical Analysis(%) Al2O3 Fe2O3 |
45 2.0 |
50 2.5 |
60 2.5 |
65 2.3 |
| Application Guidelines Mixer Placement Water/Mixer Temp℃ Mixing Time(Min):Dry/Wet |
P R/V/T 20±5 2/5 |
P R/V/T 20±5 2/5 |
P R/V/T 20±5 2/5 |
P R/V/T 20±5 2/5 |
| Water % (Typical) | 11-13 | 11-13 | 9-11 | 9-11 |
Features
- Excellent abrasion resistance, suitable for high-wear operating conditions
- Good thermal shock resistance, maintaining stability under rapid temperature changes
- High temperature resistance, ensuring reliable performance in severe thermal environments
- Strong corrosion resistance, protecting against chemical and slag attack
Applications
- Boiler refractory linings, including CFB boilers, chain grate boilers, and other industrial boilers
- Steel industry applications, such as furnaces, ladles, and high-temperature processing equipment
