Insulation Ceramic Fiber Module / Thermal Insulation Ceramic Fiber Module
| MOQ: | 50 pcs MOQ |
| Price: | Negotiable Price |
| Standard Packaging: | Carton Box or Pallet |
| Delivery Period: | 10-15DAYS |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000 tons/month |
Ceramic Fiber Module Insulation
,Thermal Insulation Ceramic Module
,Ceramic Fiber Module High Temperature

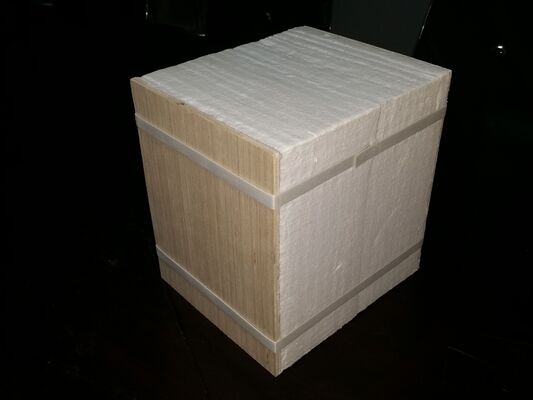

Ceramic fiber folded module is pre-compressed refractory insulation block manufactured by folding ceramic fiber blanket and fixing with stainless steel anchor assemblies. It is widely used as lining material for high-temperature industrial furnaces, kilns, boilers and heat treatment equipment.
Before delivery, the module is fully pre-compressed. During on-site installation, after fixing the anchor parts on the furnace shell, the modules are arranged closely. Once the binding bands are removed, the modules expand laterally to fill gaps automatically, forming a seamless thermal insulation lining. It greatly reduces heat loss and shortens furnace construction time.
Our ceramic fiber modules cover multiple grades with classification temperature from 1050℃ up to 1600℃. Custom dimensions and material formulations are available to match different working conditions.
Product specification
|
Item |
Specification |
|
Product Name |
Ceramic Fiber Folded Module (Refractory Ceramic Fiber Module) |
|
Raw Material |
High purity alumina-silica ceramic fiber blanket |
|
Classification Temperature |
1050℃ / 1260℃ / 1400℃ / 1430℃ / 1600℃ |
|
Continuous Service Temperature |
950℃ / 1100℃ / 1250℃ / 1300℃ / 1500℃ |
|
Bulk Density |
160±10 kg/m³; 190±10 kg/m³; 220±10 kg/m³ |
|
Standard Size |
300×300×200mm; 300×300×250mm; 300×300×300mmCustom sizes available |
|
Shrinkage (after 24h @ classification temp) |
≤3% |
|
Thermal Conductivity |
0.04~0.12 W/(m·K) (at different temperature) |
|
Al₂O₃ Content |
45% / 52% / 55% / 80% / 95% |
|
Fe₂O₃ Content |
≤0.2~0.8% |
|
Features |
Low thermal conductivity, light weight, thermal shock resistance, easy installation |
|
Application |
Industrial furnace, kiln, boiler lining, heat treatment furnace |
|
Accessories |
Stainless steel anchor bolt, base plate, washer |
Advantages
- Low thermal conductivity, excellent thermal insulation performance, effectively cut down energy consumption.
- Light weight, low heat capacity, reduce furnace body load and speed up furnace heating & cooling cycle.
- Low permanent linear shrinkage at high temperature, stable lining structure, less risk of crack and heat leakage.
- Outstanding thermal shock resistance, resistant to rapid temperature rise and drop.
- Pre-compressed design, fast and simple installation, shorten construction period.
- Good chemical stability, resist corrosion from most neutral and weak acid atmospheres.
- No organic binder, low smoke and no toxic gas under high temperature.
- Flexible customized size and temperature grades for various industrial furnace applications.
