Ceramic Fiber Paper Reliable Performance For Thermal Insulation
| MOQ: | 1 roll |
| Price: | Negotiable |
| Standard Packaging: | Bag Or Carton Box Or Pallet |
| Delivery Period: | 10-20days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 10000 rolls/month |
Reliable Performance Ceramic Fiber Paper
,Thermal Insulation Ceramic Fiber Paper
,Ceramic Fiber Paper For Thermal Insulation

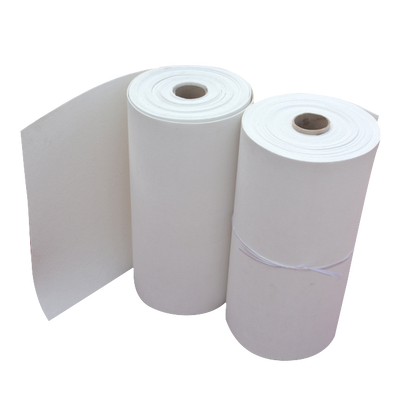

Ceramic Fiber Insulation Paper
Ceramic fiber paper is a lightweight, high-temperature resistant refractory material made from high-purity alumina silica ceramic fibers. Through a wet forming process similar to papermaking, these fibers are mixed with organic binders to form a uniform and soft sheet. Organic adhesives will burn off during the initial heating process, leaving behind a pure inorganic fiber structure.
Ceramic fiber paper has low shrinkage, good processing strength, and low thermal conductivity. It contains a small amount of organic adhesive used for processing, making it flexible while reducing exhaust gases and odors during use. Due to its controlled basis weight and thickness, our product has a highly uniform structure, ensuring uniform thermal conductivity and a clean and smooth surface, making it an ideal choice for gaskets or seals.
Ceramic fiber paper is completely asbestos free and aims to become an economical alternative to asbestos paper in most applications.
Technical Specifications
|
Grade |
Standard |
High Pure |
High Aluminium |
Zirconium |
|||
|
Max. Temperature (C) |
1050 |
1150 |
1260 |
1430 |
|||
|
Shrinkage on Heating (%) |
800C×24h≤-3 |
1000C×24h≤-3 |
1280C×24h≤-3 |
1400C×24h≤-3 |
|||
|
Organic Content (%) |
≤5 |
≤5 |
≤5 |
≤5 |
|||
|
Thermal conductivity by mean temp. (W/m.k.) (250kg/m3) |
200℃ |
0.055～0.065 |
0.060～0.070 |
||||
|
400℃ |
0.110～0.120 |
0.105～0.125 |
|||||
|
600℃ |
0.160～0.170 |
0.170～0.180 |
|||||
|
Chemical Composition (%) |
AL2O3 |
43 |
47 |
55 |
38 |
||
|
SiO2 |
53 |
51 |
44 |
44 |
|||
|
Fe2O3 + Ti2O3 |
≤1.2 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
CaO + MgO |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
NaO + KO2 |
≤0.5 |
≤0.3 |
≤0.3 |
≤0.2 |
|||
|
Density (kg/m3) |
170~230 |
||||||
Why Choose Our Products?
- High Temperature Stability: Continuous service temperature typically ranges from 2300°F to 2732°F (1260°C to 1500°C), depending on the grade (standard, high-purity, or zirconia-reinforced).
- Low Thermal Conductivity: Exceptional insulating capability reduces heat loss and saves energy.
- Low Thermal Mass & Heat Storage: Its thin, low-density structure heats and cools rapidly, enabling faster thermal cycles.
- Excellent Thermal Shock Resistance: Resists spalling and cracking even under sudden, extreme temperature changes.
- Chemical Stability: Resistant to most corrosive agents (except hydrofluoric acid, phosphoric acid, and strong alkalis). Does not wet with molten aluminum.
- Mechanical Flexibility: Easy to cut, wrap, fold, or die-cut into complex shapes.
- Low Shrinkage: Maintains dimensional stability under high heat.
- Electrical Insulation: Provides good dielectric strength at elevated temperatures.
- Non-Wetting to Molten Metals: Particularly suitable for aluminum casting applications.
Primary Applications
-
1.Die cut gaskets between castings in coke oven doors, blast furnace hot air piping, aluminium heat treating furnace, tuyeres and heat treat furnaces.
-
Backup for brick and monolithic refractories in blast furnace stoves, piping, tundish, ladle, hot metal cars, trough etc.
-
Mould wrapping for controlled cooling
-
SEN isulation wraping
-
Shield for welding & brazing operation
-
Rotary klin back-up insulation
-
Fabricated into tapout cones for Aluminium industry.
-
Expansion joint packing
Frequently Asked Questions (FAQ)
Q1: Can ceramic fiber paper be cut easily on site?
A: Yes, it can be easily cut with a sharp knife, scissors, or die‑cut tools without special equipment. This makes it convenient for field adjustments.
Q2: Can Ceramic Fiber Paper be used as a direct flame face material?
A: Yes, in many applications. Standard grades can withstand direct flame impingement up to their rated temperature. However, for extreme or oxidizing conditions, a higher-purity or zirconia-reinforced grade is recommended.
Q3: Is Ceramic Fiber Paper suitable for use with molten aluminum?
A: Yes, high-purity ceramic fiber paper is commonly used in aluminum processing as a non-wetting barrier and insulation. However, it should not be used with molten magnesium or high-alkaline metals.
