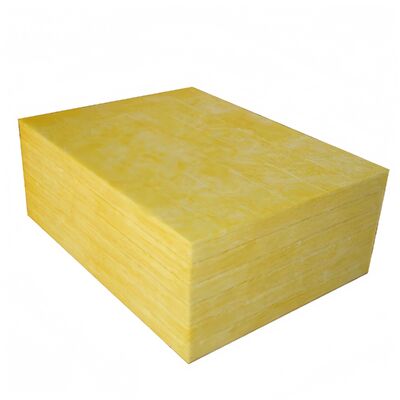

50 - 130kg/m3 Glass Wool Board Insulation Fireproof Thermal Acoustic Insulation Material
| MOQ: | 100 Pcs |
| Price: | Negotiable |
| Standard Packaging: | Plastic Bag |
| Delivery Period: | 7 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 1000000 pcs/month |
Detail Information
Place of Origin
China
Brand Name
SUNWOOL
Certification
ISO CE
Model Number
Glasswool Board
Refractoriness:
650C
Size:
Customizable
Package:
Vacuum Plastic Bag
Type:
Board,pipe ,blanket
Blanket Density:
10-48kg/m3
Blanket Width:
1200mm
Blanket Thickness:
25-200mm
Highlight:
130kg/m3 Glass Wool Board Insulation
,Glass Wool Board Insulation Fireproof
,Thermal Acoustic Insulation Material
Product Description
Quick Detail:
Leadsun Glass Wool Board is manufactured using advanced centrifugal technology and environmentally friendly thermosetting resin binders. Composed of ultra-fine glass fibers with diameters of only a few microns, it contains numerous tiny air pockets that provide exceptional thermal insulation, sound absorption, and fire safety properties. This makes it an ideal insulation material for a wide range of construction and industrial applications.
Specifications:
| item | unit | index | Standard |
|---|---|---|---|
| Density | kg/m3 | 50-130 | GB/T 11835-2016 |
| Thickness | mm | 50-150 | GB/T 11835-2016 |
| Size | mm | 1200*600 | GB/T 11835-2016 |
| Thermal conductivity | W/m.k | ≤0.043 | GB/T 11835-2016 |
| Grade of combustibility | A1 | GB 8624 | |
| Surface combustion characteristics | FSI=0,SDI=5 | ASTM E84 | |
| Max service temperature | ℃ | ≥600 | GB/T 11835 |
| Shot content | Kg/m² | ≤0.5 | GB/T 11835-2016 |
| Moisture rate | % | ≤0.5 | GB/T 11835-2016 |
| Water content | % | ≥98 | GB/T 11835-2016 |
| Acidity coefficient | ≥1.6 | GB/T 11835-2016 | |
| Slag inclusion content | % | ≤7.0 | GB/T 11835-2016 |
| Average fiber diameter | um | ≤6.0 | GB/T 11835-2016 |
| Organic mater content | % | ≤4.0 | GB/T 11835 |
Features:
- Excellent Thermal Insulation: Low thermal conductivity (≤0.043 W/m·K) ensures effective heat retention and energy efficiency.
- Superior Acoustic Performance: Effectively absorbs sound, reducing noise transmission in buildings and equipment.
- High Fire Resistance: Class A1 non-combustible material with excellent fire safety characteristics (FSI=0, SDI=5).
- Moisture Resistant: Hydrophobic treatment available upon request to prevent water absorption.
- Lightweight & Flexible: Easy to handle, cut, and install in various applications.
- Environmentally Friendly: Made from recycled glass content and free from harmful substances.
- Dimensional Stability: Low shrinkage rate (<2%) ensures long-term performance.
- Wide Temperature Range: Suitable for continuous use up to 600°C.
Available Specifications:
- Density: 50, 64, 80, 96, 120, 130 kg/m³ (customizable)
- Thickness: 50mm, 75mm, 100mm, 150mm (other thicknesses available)
- Standard Size: 1200mm × 600mm (custom sizes and rolls available)
- Facing Options: Plain, foil-faced, glass cloth, or other facings as required
Applications:
- Building Insulation: External walls, internal partitions, roofs, ceilings, and floors.
- HVAC Systems: Duct insulation, air handling units, and ventilation systems.
- Industrial Equipment: Boilers, furnaces, pipelines, and thermal equipment insulation.
- Acoustic Control: Sound absorption in studios, theaters, offices, and industrial noise reduction.
- Fire Protection: Fire barriers, fire-rated walls, and structural fireproofing.
- Commercial & Residential: Hotels, hospitals, schools, shopping malls, and residential buildings.
